SPECIFICATIONS

Alarm Type: Local Alarm

Audio Output: Two Way Audio

Battery Capacity: 6800mAh

Brand Name: woolink

Certification: CE,FCC

Choice: yes

Clarity: 1080p

Connectivity: 2.4G

Focal Length: 3.6mm

High-concerned chemical: None

Horizontal Resolution: 1200TVL

Installation: Normal,Wall Mounted,Vertical Pole Mount

Internal Storage: 128G

Lens (mm): 4mm

Model Number: N1140TYN

Origin: Mainland China

Plug Type: EU Plug,US Plug,AU Plug,UK Plug,KR,JP

Power Source: Normal

Power Supply: Normal

Sensor: CMOS

Sensor Size: 1/3"

Signal System: NTSC,PAL

Special Features: Waterproof / Weatherproof,Audio,Alarming

Supported Mobile Systems: iOS,Android

Technology: INFRARed,Pan / Tilt / Zoom

Viewing Angle : 180 °

FAQ

Q: Why the camera can't be viewed on phone APP when I use it first time?

A: Firstly please charge the camera in full and reset it when you use it,Secondly,if the charging is well but no connection yet,then please check the wifi router to sure the wifi router is 2.4G wifi,or it will fail to connect.

Q: Does the camera support 24/7 continue recording?

A: No,it is an event recording camera.When detects a moving object or person, it automatically activates recording.

Q:How many days can the camera be used after full charging?

A: About 30 days,if the camera is activated less than 30 times each day and do not charged by panel or USB cable.And the solar panel can charge the camera on daylight.

Q: I install the SD card already but there is no playback video in it?

A: For the first time use,please make sure the micro SD card is brand new and not used,if the card is used before,then please formated it on PC computer not on phone and then install,it will save the motion recording normally.

Q: Why solar panels don't charge or charge slowly? Why is my camera battery low?

A: Triggers too many times a day,please turn on the human detection and set the sensitivity of the human detection and the motion detection sensitivity about 3.

In winter,camera standby power consumption increasing, we suggest use it by connecting the 5V/1A adapter when the temperature is low.

The signal is weak, the camera is offline and keeps searching for signals, which increases power consumption. Please install the camera closer to the router

Q:How far is the connection distance between the camera and the router

A:0.5-15 meters,keeping the WiFi signal strength above 70%.The number of signals passing through the wall or the thickness of the wall is different, and the connection distance is different.

Description

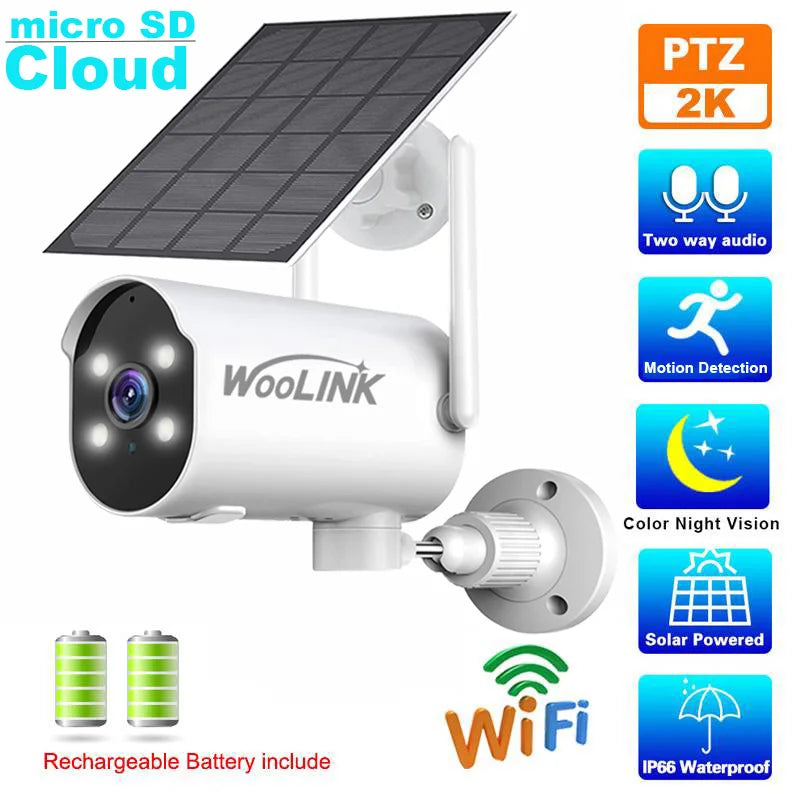

*2K outdoor solar powered monitoring camera

*Built-in 6000mah rechargeable battery,provides uninterrupted eco-friendly solar power to the outdoor security camera.

*100% wireless design, unlimited installation, you can install it anywhere with sunshine after connecting the WIFI.

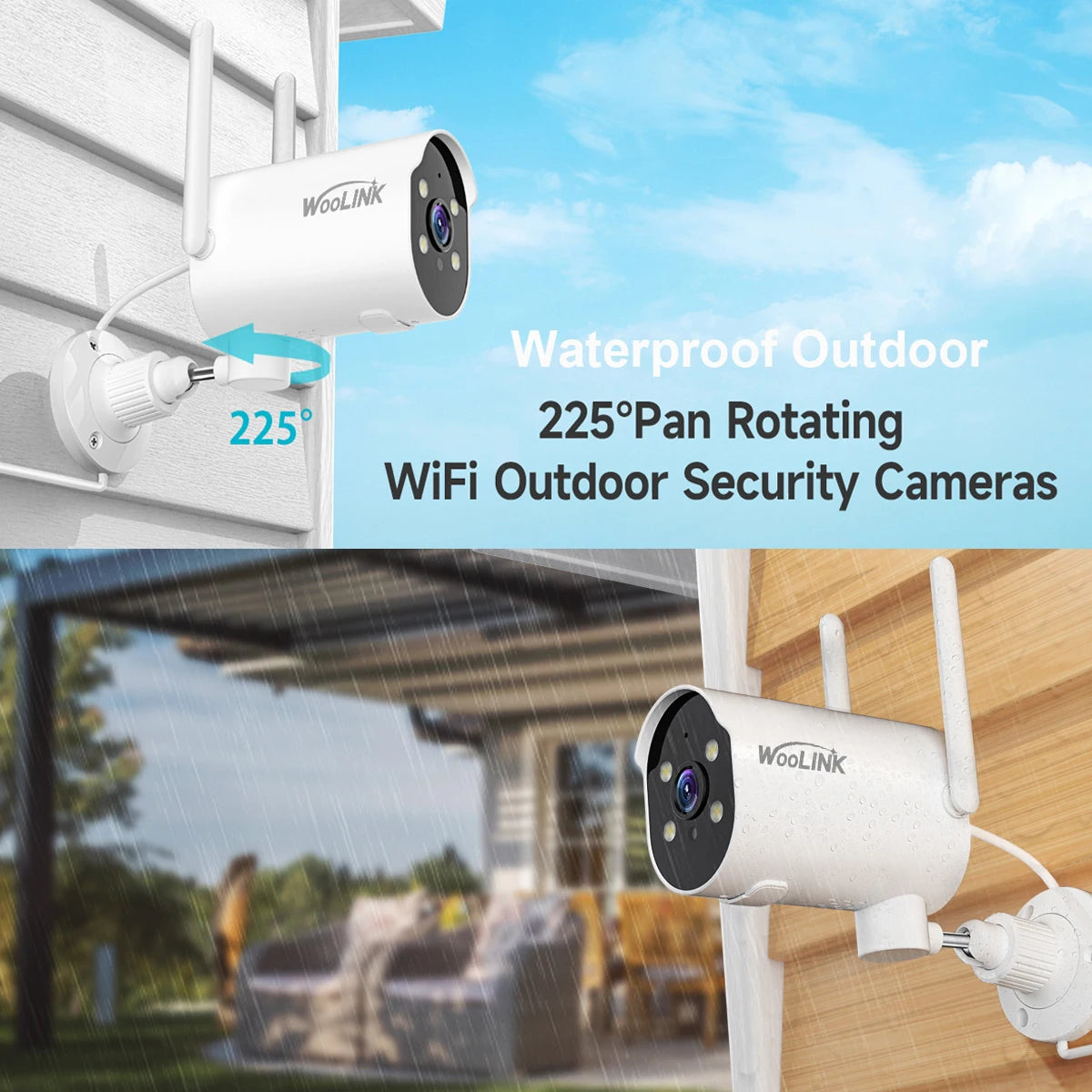

*Horizontally pan rotation 225°, cover more range you need to watch.

*IP66 Waterproof and Dustproof,it is suitable for any environment and weather.

*PIR Humanoid Detection and Alert Siren Alarm,know your home security status anytime, anywhere

*Built-in 2 powerful 22MIL high-power LED dual lights provide clear night vision up to 33FT,support infrared night vision, full color night vision, and intelligent night vision.

*Equipped with a high-quality microphone and speaker system, enables two-way interactive conversation at any time, allowing you to easily view real-time footage and communicate with visitors on the app.

*Support TF Card/Cloud storage,offer 30 days free trial time,if you do not want to use the cloud stoarge,it support up to 128G TF card.

Camera Features

1. Battery capacity: 6800mAh

2. Free APP: Homeye or iCSee

3. Image Resolution: 2048x1536 (3MP)

4. Camera Lens: 3.6mm

5. Night Vision range:12m

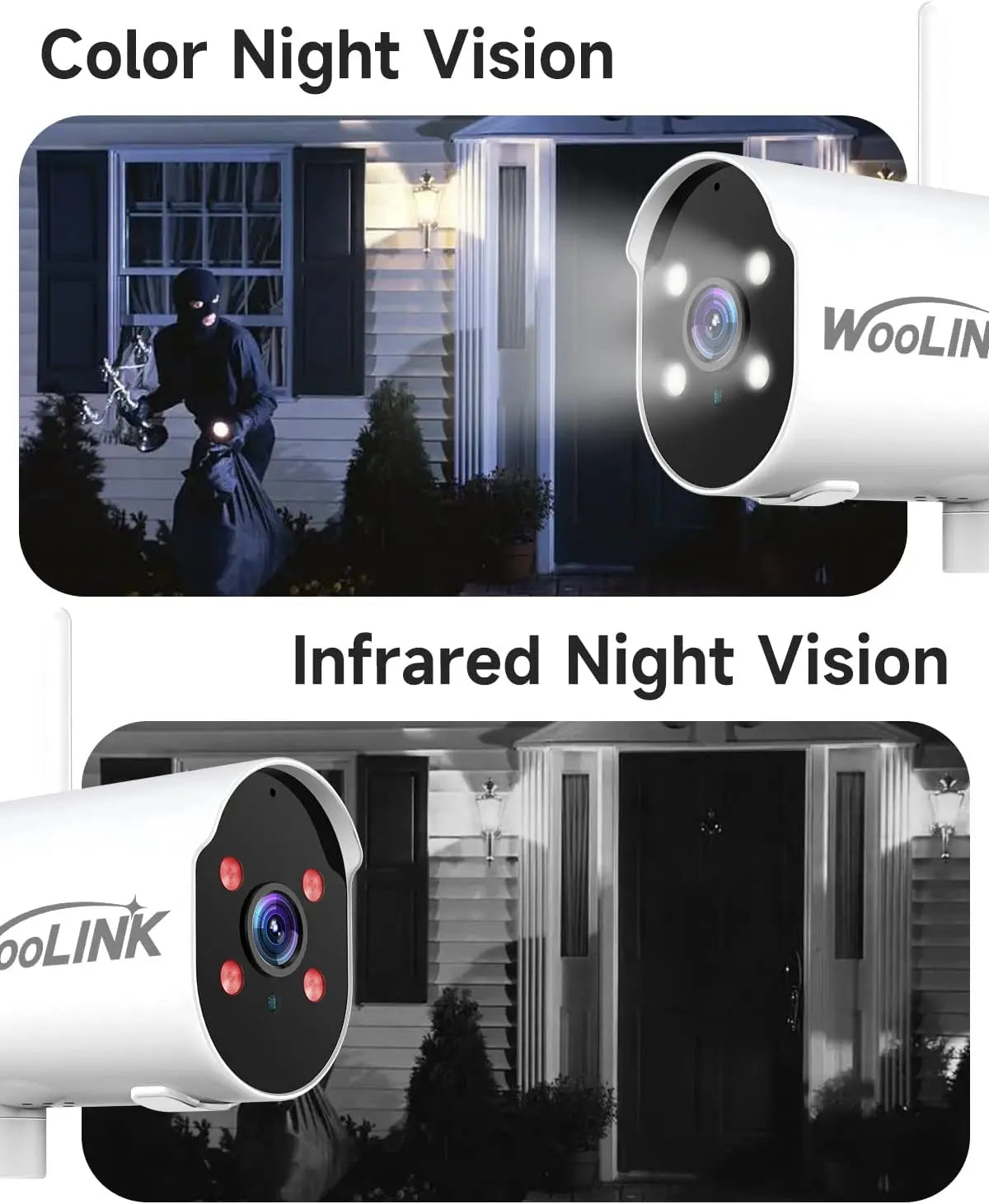

6. Support infrared night vision, full color night vision, and intelligent night vision choose.

7. Support Motion Detection Push and Local Alarm Function

8. Support Wifi(2.4ghz) Connection

9. Support PIR Humanoid Detection

10. Support Two-Way Audio

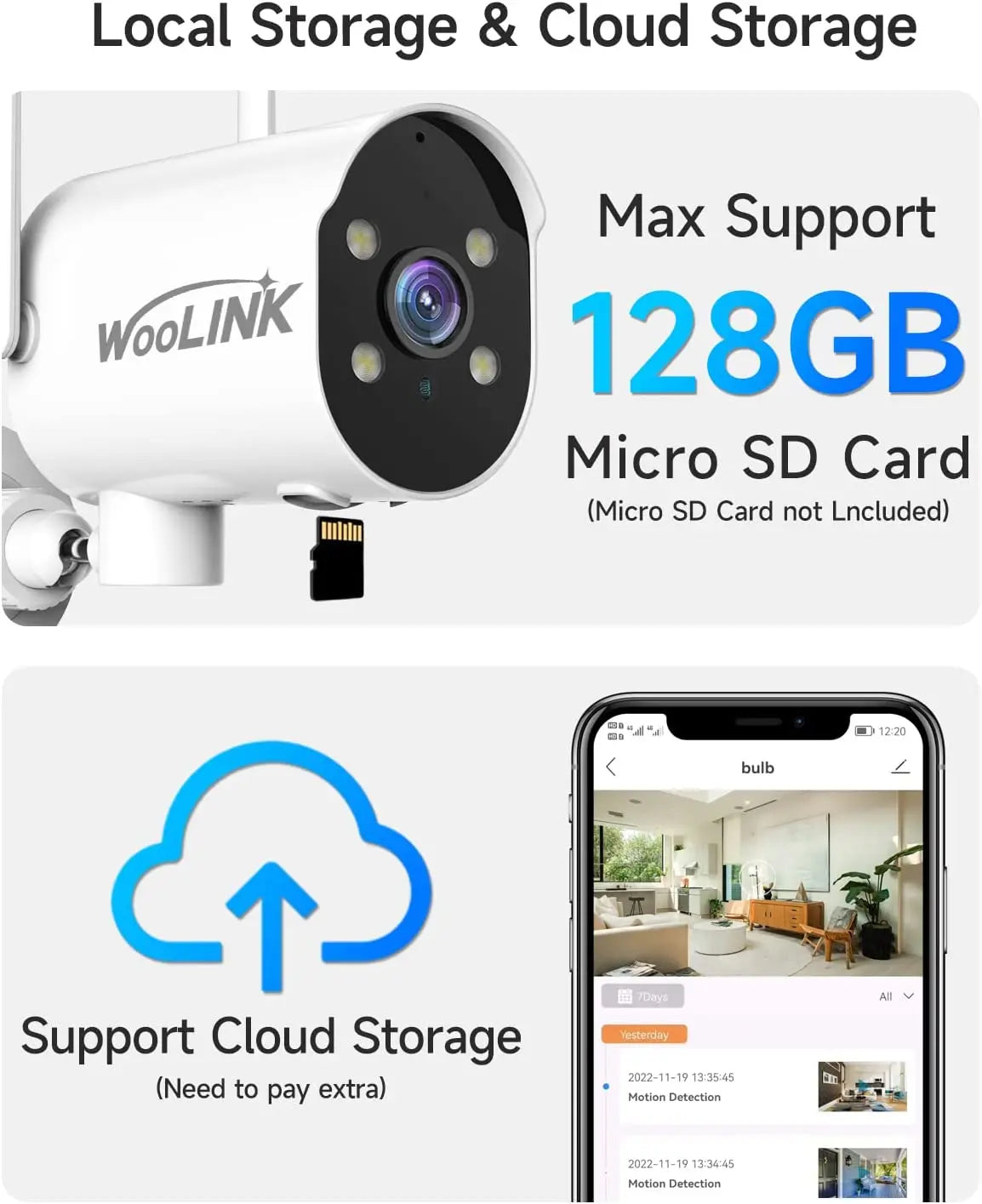

11. Support TF Card Max 128 GB and Cloud storage(paid after trial)

12. Weatherproof Level: IP66

13. View angle:Pan rotation 225°

14. Power Supply:Solar panel or USB cable charging.

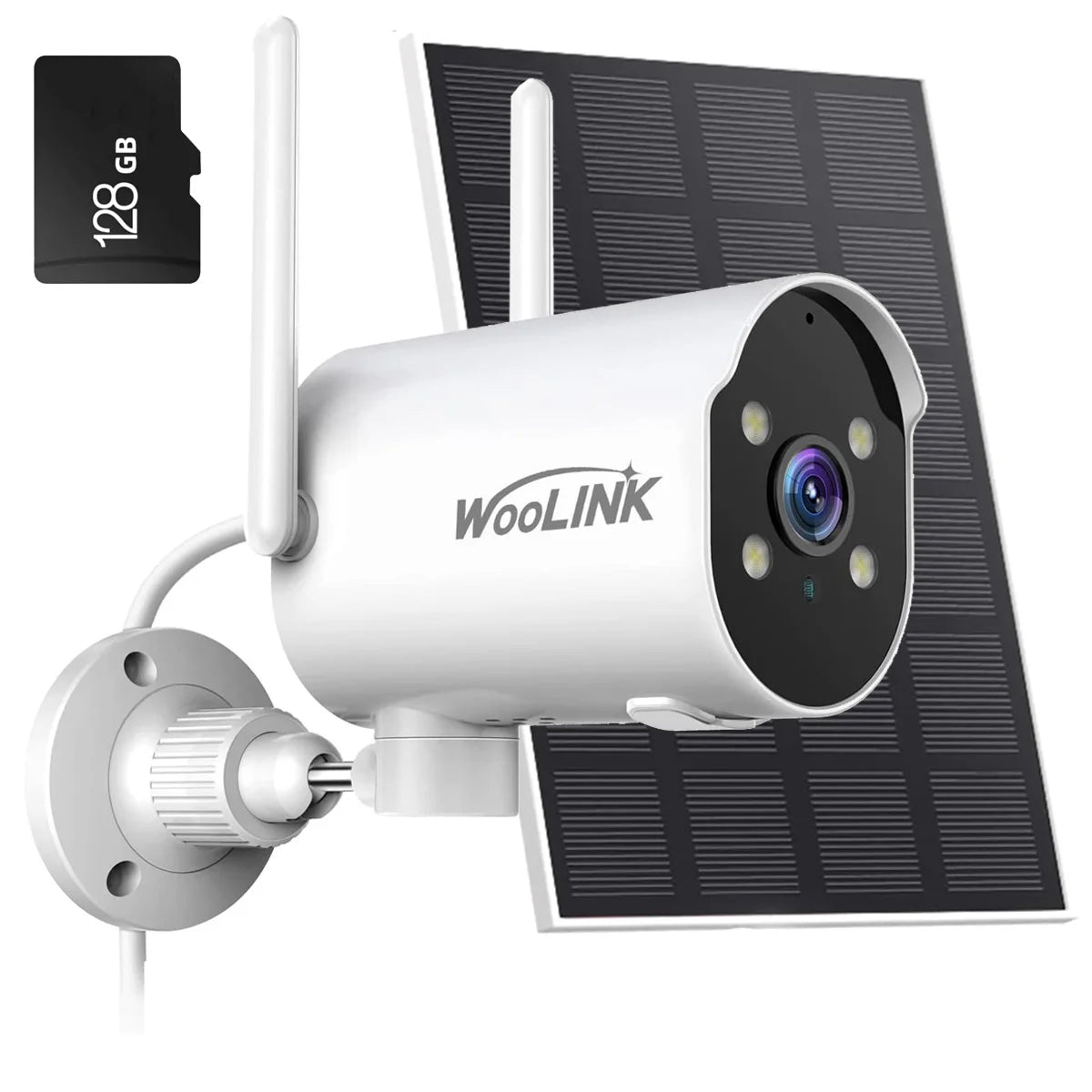

Package content:1xbattery camera,1xsolar panel,2xbracket stand,few screws

Kindly Remind:

1.The camera can work with 2.4Ghz wifi,can not connect 5G WiFi,if it fail to connect,please have a check to your wifi router at first

2.You can rotate the camera pan 225 degree on phone APP,the solar panel and bracket stand can be adjust by hand,do not have auto tracking.

3.For the first time use,if you want to save the recording with micro SD card,please make sure your SD card is brand new and never used.If the SD card is used before,then please formated the SD card on PC computer at first and then install it,or sometimes the card will fail to save the recording successfully.

4.How to use:Charge the camera in full before you use and plz turn it off when it is charging and turn it on when you use>Click the camera reset button when you use it>Download the APP by scan the QR code>Register the APP account>Connect the camera as tips
